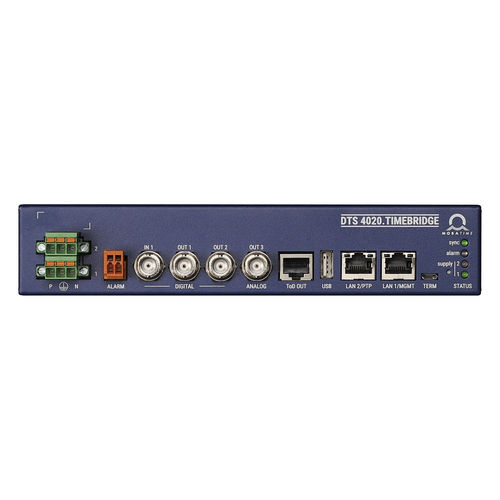

PTP clock DTS 4020.timebridge

synchronizedIEEE 1588slave

The DTS 4020.timebridge serves as an interface between the IEEE1588 protocol (multicast slave clock / PTP slave) supplied across a packet network to traditional serial Time-of-Day (ToD), 1PPS, 10MHz and IRIG B signals or NTP client in a PTP / NTP network. Technical features 2 completely separated LAN ports (2x RJ45): synchronize to PTP on 1 port · 1- and 2-step slave · different profiles and domains · multicast/unicast · IPv4/IPv6/Layer 2 provide NTP on 2 ports (typically >10’000 requests/s on both 2 ports combined Multi-purpose device due to the different time code and frequency outputs: 1x Time of Day 2x pulse/frequency/IRIG output 1x IRIG-B/10MHz sinus
