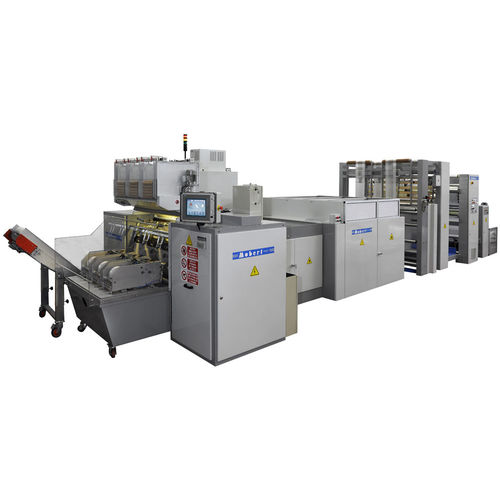

Plastic bag making machine 110 SHP

paperautomatic

Specialized line for the production of T-Shirt and Bottom Welded Bags wound on a roll and pre-cut for tearing Key Features: Packing: in rolls with paper tape Electronic Roller welding machine with Brushless motors running on an integrated system. Special device for handling film anti stretching welding bar designed also for very thin films. Stabilized welding bar with Ni-Cr strip for the production of T-Shirt and Bottom Welded bags; Cooling with closed circuit liquid. Patented Mobert system for film block and raffia block using self - adapting flexible pliers Cold pre-cutting system with Adjustable serrated blade Patented punching system with loop cut Production data and bag length can be digitally set on monitor with possibility to store "recipes" of production. This allows you to quickly change the type of processing, by pressing a key the previously stored data set. Automatic winding on 6 spindles for continuous operations at high production speeds VERSION WITHOUT CARTON CORE: Production line for 2 or 3 tracks Automatic compensator and alignment device VERSION WITH and WITHOUT CARDBOARD CORE: Line for the production on 2 independent tracks Independent control of each track by dancer compensator Device for the production of rolls with cardboard core composed of: Containers for cardboard core with adjustable compartments suitable to accommodate cores with width comprised between 200 and 300 mm. Device for transferring the carton cores from the container to the mandrel; core inner diameter of 30mm.
