LTE antenna SMW-314

GPSGLONASSmulti-band

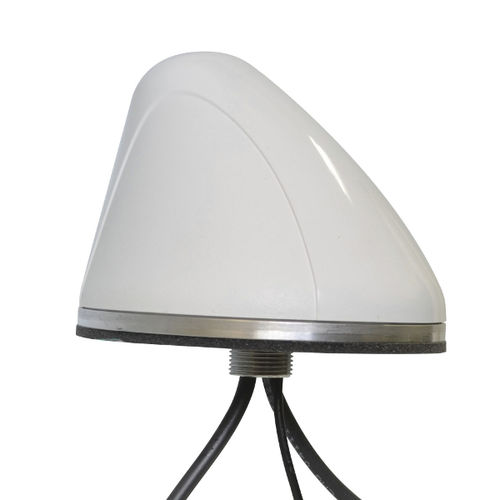

SMW-314 (LTE, DSRC, GPS) GPS Multiband Surface Mount Antenna 3 cables: Global LTE, DSRC, GPS Cable 1: 694-960 MHz, 3 dBi & 1710-3700 MHz, 4 dBi Cable 2: 5.8-6.0 GHz, 7 dBi Cable 3: 1575 MHz, LNA 26 dB, 5 dBi gain Popular for DSRC trials that require wideband cellular coverage Specify MGW-314 for mag-mount version. Specify SMWG-314 or MGWG-314 for GNSS (GPS & Glonass) models. The SMW-314 features 3 elements in one antenna radome, measuring 4.2″ D x 3.17″ H (10.67 cm x 8.05 cm). The data antenna element is multi-banded, covering applications from 694 MHz to 6000 MHz including cellular Global LTE at 694-960 & 1710-3700 MHz. A second antenna element covers 5800-6000 MHz DSRC bands. The third antenna element covers GPS. An optional GNSS model is available, specify SMWG-314. The antennas are available in either surface-mount or mag-mount models. Specify MWG-314 for the mag-mount.
