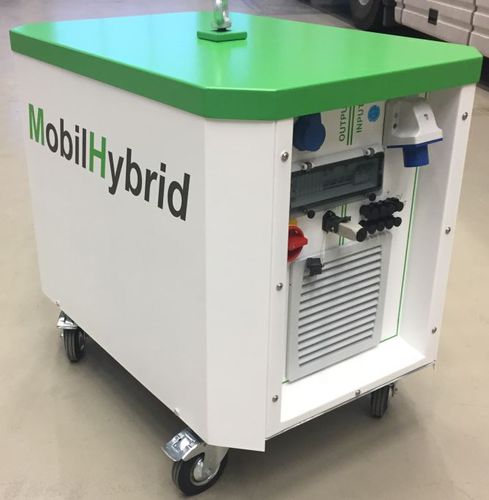

Pure sine wave energy storage system MH4

MH-4 Every MobilHybrid has a protective function against overload, excess temperature, short circuit and deep discharge Protection class IP54 Combined with our M obile PV installations Additional information Weight - 355 kg size - 900 × 600 × 800 cm Size - A. Continuous output VA at 25 ° V - 4000 Peak power VA 25 ° C 5 sec - 10,000 Output voltage AC - 1 AC 230V Input current max. AC - 16A 1ph Max. Output current - 16A Protective functions - Overload, overtemperature, short circuit, discharged battery Earth fault protection - 16A 1ph 30mA FI Usable battery capacity kWh - 6th Input connector - CEE 16A 1ph Output connector A - 1 x Schuko 16 A Charging time to full charge - 2.5h Auxiliary contact (remote start diesel gen.) - Harting HAN-7D Battery monitoring - LCD display: voltages, power, remaining battery capacity, range, charging cycle history Battery cycles - 1200 Protection class - IP54 Operating temperature range - -10 ° C to + 40 ° C Optional photovoltaic connection - MPPT controller with up to 8kWp connectable module power
