Rotor mill IMD 700 SERIES

horizontalfor coffeestainless steel

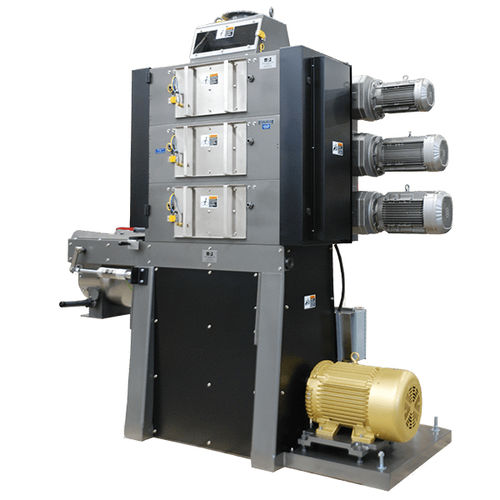

IMD 700 Series "MODEL IMD 700 SERIES COFFEE GRANULIZER * IMD 79 - TWO (2) GRINDING SECTIONS, IDEAL FOR FILTER APPLICATIONS * IMD 779 - THREE (3) GRINDING SECTIONS, IDEAL FOR ESPRESSO/CAPSULE APPLICATIONS" Application Espresso (200 – 450 μm): Up to 2,500 lb/hr (1,100 kg/hr) Filter (500 – 1,000 μm): Up to 5,000 lb/hr (2,200 kg/hr) Capacity Up to 5,000 lb/hr (2,200 kg/hr) Sections 2 or 3 Product Description The IMD 700 Series Granulizer is one of MPE’s most technically advanced coffee grinders, producing between 800 and 2,200 kg/hr of ground coffee, depending upon the application, to the highest tolerances and most exact specifications. A central element of the IMD 700 is the recipe-driven PLC control system, which monitors and controls all aspects of the grind size and density control with “Real-Time” performance feedback. Features include water-cooling, real-time density control and optional bimodal grinding. Features - Variable speed rotary power feeder - Independent Motor Drives (IMD) for each grinding section - Integrated normalizer with density control and chaff reduction - Water-cooled rolls and normalizer - Automated control system with precision grind size and density control - Dust-tight construction - Oversized doors for easy cleaning - High hardness rolls for maximum roll longevity Available Options - Integrated magnet and pneumatic slide gate - Stainless steel or electroless nickel construction - Extreme hardness roll coatings - Gas-tight or hermetically-sealed design - Closed-loop water chiller - Internal vibrators to eliminate internal coffee accumulation - Intelligent real time density control system
