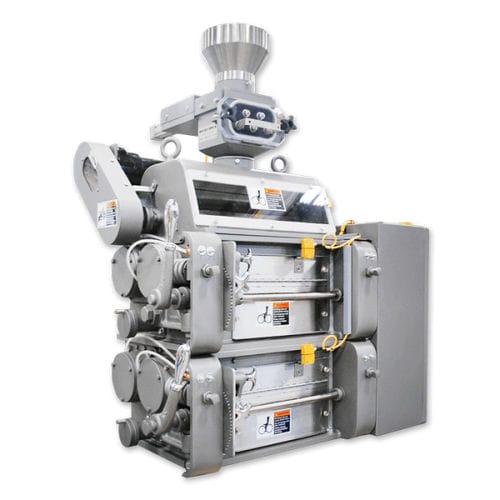

Roller mill 700 UPD
horizontalfor coffeestainless steel

roller mill
roller mill
roller mill
Add to favorites
Compare this product


Characteristics

Technology
roller
Orientation
horizontal
Product applications
for coffee
Other characteristics
stainless steel, variable speed, automatic
Output

680 kg/h
(1,499 lb/h)

Description

700 UPD MODEL 700 UPD SOLUBLE SERIES COFFEE GRANULIZER Application Soluble (1,000 – 3,000 um): Up to 1,500 lbs/hr. (680 kg/hr.) Capacity Up to 1,500 lb/hr (680 kg/hr) Sections 2 Product Description UPD (Ultra Particle Distribution) technology was developed in 2003 in conjunction with a major soluble coffee producer. The UPD technology incorporates unique roll cuts, ratios and product presentation to achieve superior product uniformity with 40 – 70% less dust than previous technologies. The result: better extraction and filter performance. Features - Variable Speed Power Feeder - Independent Motor Drives (IMD) for each grinding section offer highest capacity - Infinite Roll Gap Adjustment - Rugged Construction and Spring-mounted Rolls - Roll Surface Options and Precision Tolerances - High Torque Drive (HTD) Belt for quiet, low-maintenance operation Available Options - Semi-automatic Control System - Digital Gap Indication - Integrated Magnet and Pneumatic Slide Gate - Stainless Steel or Electroless Nickel Construction - Gas-Tight or Hermetically-Sealed Design
