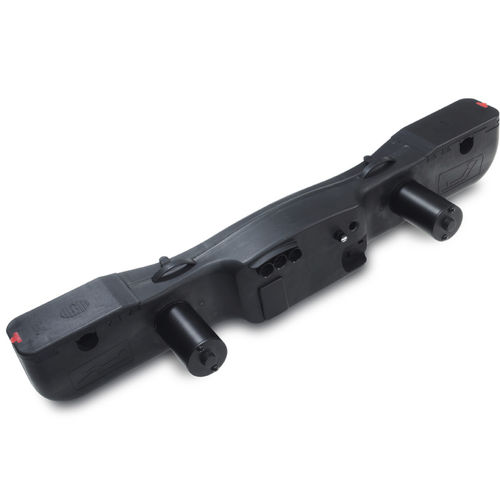

Double motor CF43

ACasynchronous100 V

CF43 is a compact double motor featuring high force and low noise level, which is an ideal solution for home adjustable beds. There are many optional functions such as internal switching mode power supply (SMPS) and internal RF receiver available for customers to choose. Technical Information - Max. load: 2 x 4500N - Max. speed at no load: 5.9 mm/sec - Max. speed at full load: 4.3 mm/sec - Stroke: 29 ~ 87 mm - Input voltage: 100V AC / 120V AC / 230V AC (transformer) or 100 ~ 240V AC (SMPS) - Max. number of controls: 1 channel - Power supply: 24V EI transformer - Protection class: Class II - AC Power cord length: 3000mm - Noise level: ≦55dB - Color: black - Duty cycle: 10%, max. 2 min. continuous operation in 20 min. - Emergency lowering against power outage, to retract double motor with 9V batteries (not included) - Certified: CE marking, EMC Directive 2014/30/EU Options - Internal switch mode power supply - Internal 2.4GHz RF receiver module - Bore diameter: 25.2mm (standard) / 25.6mm - Backup batteries: 9V DC x 1 (standard) / 9V DC x 2 (RF version)
