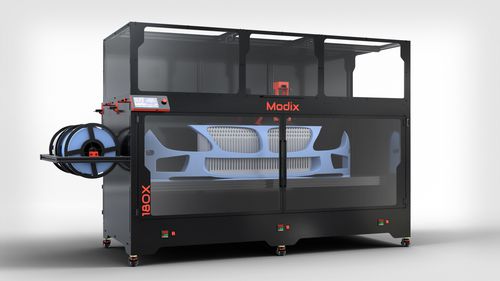

PEI 3D printer BIG-180X

IDEXindustrialmodular

Modix BIG-180X printer was first introduced in late 2019. Similar to BIG-60, it has all the latest components of generation 4 and enjoy the same level of modular offering to better match your needs and budget. For in-depth specifications, please refer to the tech-specs page. Here are a few of the BIG-180X unique specifications: • Print volume of 1,800 x 600 x 600 mm • Printer dimensions: 2,630 x 1,060 x 1,573 mm • Shipping weight: 210kg • Delivery method: Self assembly kit • Print head: single Griffin extruder, 1.75mm filament. • Dual head (IDEX) optional. • Duet3D Wifi 32 bit controller & Duex5 Expansion board • 4 X Z axis motors are controlled individually providing automatic bed tilt calibration. • 100 probing point for automatic bed leveling • Minimal Electricity requirements – single phase, 208-240V: • North America customers: NEMA L6-30P 30A outlet • EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet • Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years, please select the desired extension below. • Shipping cost is a regional flat fee that should be selected at the bottom of this product page after you select the required components.
