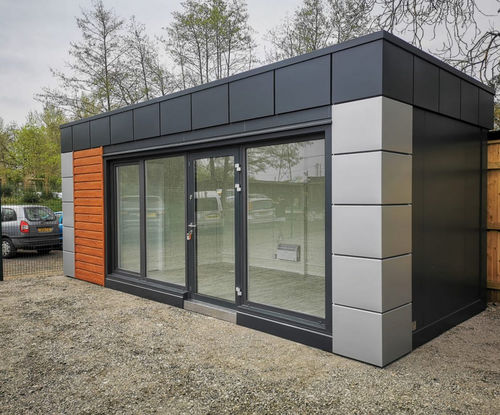

Modular building YOLA

industrialofficeevent

PRODUCT DESCRIPTION Portable office building based on a steel frame and sandwich panels comprising of two steel sheets facings and a 150mm insulation core PWS-S / PWS-D (Styrofoam core Uc value (W/m2·K) = 0,25) with external dimensions in accordance with floor plan, internal height 2.5 m WALLS Sandwich panels comprise of two steel sheet facings and a 150mm insulation core PWS-S/PWS. Uc value (W / m2 · K) = 0.25. Panels facing are made of a galvanized steel sheet coated with polyester paint: thickness 0.5mm sloping roof: under 50sq m sandwich panel 150 mm Uc value (W / m2 · K) = 0.25, STEEL construction visible inside anticorrosive painted - decorative panels - gutter, - insulated self-supporting floor, 22mm panel, Ac4 anti-slip laminate flooring WINDOWS & DOORS made with laminated safety glass Laminated glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer, typically of Polyvinyl Butyral or Ethylene-Vinyl Acetate, between its two or more layers of glass Aluminum Doors (24mm double glazing); Installation: 33.1/12/33.1, Folio: PVB, Thickness 76, Gas: Argon, Sound Reduction: 36db PVC Window Fixed (24mm double glazing); Installation: 33.1/12/33.1, Folio: PVB, Thickness 76, Gas: Argon, Sound Reduction: 36db PVC Window T&T (24mm double glazing); Installation: 33.1/12/33.1, Folio: PVB, Thickness 76, Gas: Argon, Sound Reduction: 36db ELECTRIC INSTALLATION 230V INCLUDED MORE ABOUT OUR BSPOKE MODULAR BUILDINGS Prefabrication history is already full of trials and experimentation that has simplicity, beauty as well as production and assembly speed in the heart of the architectural design.
