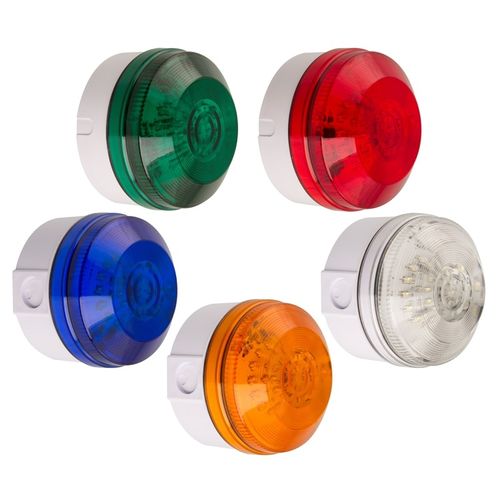

Steady beacon light LED195 series

blinkingLED24 Vdc

The LED195 series beacon has been designed for industrial & commercial signalling applications where low maintenance & long life are the pre-requisite requirement. These beacons have two stages of alarm, flashing (pre-set to either 60 or 120 FPM) or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving the flexibility to switch from a pre-set static mode to a pre-set flashing mode. The design allows for termination inside the enclosure. The LED195 deep base version offers 2 x M20 side knockouts and 1 x M20 rear. The shallow base (low profile version) allows for cable entry of up to 5mm on the side of the unit (x2) and 1 x M20 knockout at the rear. Features • Continuously rated • Suitable for conduit box or wall mounting • 120° prime light output above the vertical axis • WH = White back box • SB = Shallow base • Dustproof and Weatherproof Material UV Stable ABS Plastic Base
