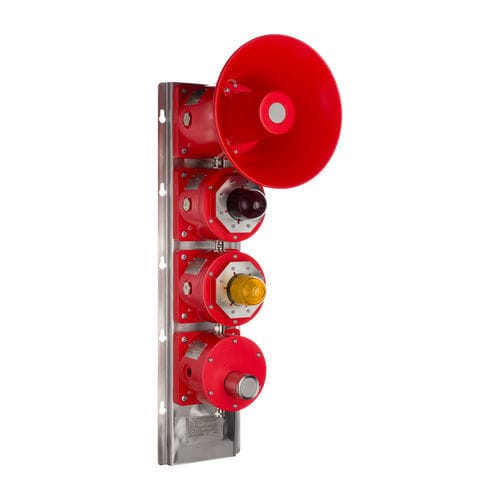

The SB125-2,3,4 combined sounder beacon range has been approved for use in potentially explosive atmospheres and very harsh environmental conditions.
Typical applications are Oil and Gas, On-shore and Offshore, Chemical, Petrochemical, Refineries & Marine locations etc.
The units offer a combined audible & visual warning signal with the option of either a junction box, allowing extra space for ease of installation & final connections. This is particularly helpful if the unit is to be installed into a fire or telecom system where additional cabling is required to monitor external devices or a push button unit for manual activation.
The units are mounted on a heavy duty 316 stainless steel, pre-drilled, mounting plate & the units are pre-wired as standard, so that on the basic model a single input operates both units simultaneously.
Features
• Approved by ATEX, IECEx
• CQST (Available on request only)
• ATEX: II 2G Exd IIC T4 – T6 (incorporating IIA & IIB )
• Zones 1, 2, 21 & 22
• Conforms to EN (IEC) 60079-0, EN (IEC) 60079-1 and EN54
• Dustproof & Weatherproof
