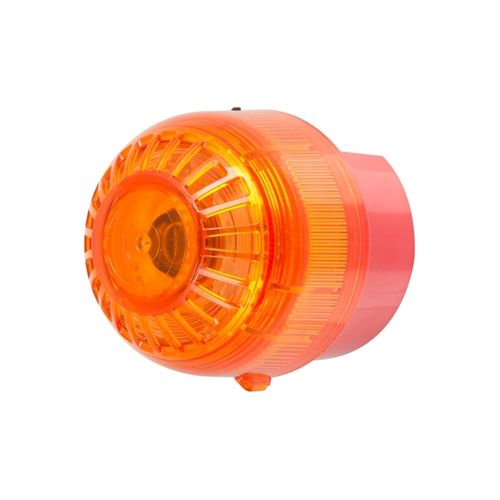

Alarm sounder with LED beacon IS-SB series

iecex atexIP66for hazardous areas

The IS-SB sounder/beacon has been approved for use in potentially explosive atmospheres for Group I (Mining) & Group II (Above Ground) applications and incorporates a high Ingress Protected IP66 enclosure. This range is suitable for Fire, Security, Process Control and general signalling applications. The sounder/beacon unit incorporates a two stage alarm option and has a total of 32 selectable tones, selectable via a dip switch on the PCB and produces up to 105dB at 1 Meter. A specially designed time saver base enables quick and easy installation of this unit with no extra cabling to be made to the head of the unit. Connections are made to the base during the initial wiring phase which results in a faster more reliable installation. The sounder head simply twists & clicks into the pre-fixed base on commissioning avoiding any additional wiring & connections. Further details can be found on the installation sheet’. This unit must be used in conjunction with an approved Zener Barrier or Galvanic Isolator. See page 2 of the datasheet for further information & ordering details. Features • Approved by ATEX, IECEx • Group I MI Ex ia I Ma • Group II IGD Ex ia IIC T6 Ga Ex ia IIIC T85°C Da • Zones 0, 1, 2, 20, 21 & 22 • Conforms to: EN 60079-0:2012 + All:2013 (IEC 60079-0:2011), EN-60079-11:2012 + (IEC 60079-11:2011) • Approved by BRE LPCB • EN 54-3: 2001 + A1:2002 + A2:2006 (CE) • EN 54-3: 2014 + A1:2019 (UKCA) • Diode Polarised & End of line resistor compatible • White base version available MOQ apply • Dustproof & Weatherproof
