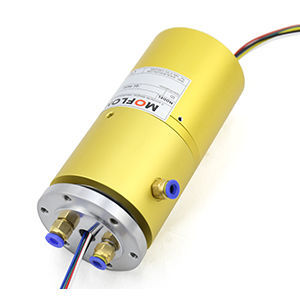

Air rotary joint MAPH200 Series

2-passagehydraulicpneumatic

MAPH200 series is 2 passages hydraulic rotating union(hydraulic rotary joints) which can get fuild/gas from stationary part to rotating part when 360°continually rotating Could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with power wire,signal wire ,Ethernet, USB, industrial-BUS, control line, solenoid valve, sense line,etc. It’s standard flange installation, hollow shaft can be customized as well. Media Types: Fuild,Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc. ① The wiring mothed and length can be customized for both rotor and stator. ② Because of the structure limitation,length/height/OD can be customized on you request. ③ Support over 300 rings of current and signal. ④ Aviation plug,Terminal and Heat-shrink tube can be selected. ⑤ Hybrid slip ring for Yaskawa/Panasonic /Siemens servo control signal,main power,encoder ⑥ Support mixed high speed data transmission(including Ethernet,USB,Profibus,Ethercat,CANOPEN,CANBUS,RS232,RS485). ⑦ Mixed Temperature control signal and Thermocouple signal ⑧ Special environment customize for quakeproof and high temperature. ⑨ Hybrid Pnuematic/Hydraulic +electrica slip ring. ⑩ Max. Temperature :500℃. ⑪ Max.Voltage:110kV. ⑫ Max. rotating speed :10000RPM. ⑬ Max.current:5000A. ⑭ Military grade. ⑮ Options:Aqua mode，IP65 or IP68 . ⑯ Stainless steel Housing.
