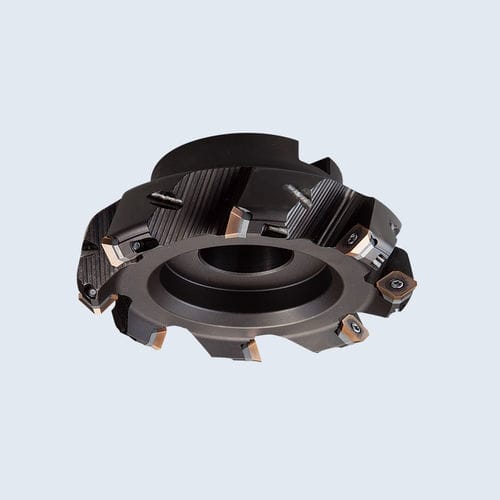

Face milling cutter AFE45 series

shell-endindexable insertroughing

With a low cutting force edge geometry, cast irons, aluminum alloys, steels and difficult-to-cut materials can be machined. 01 Axial runout is good ・AFE45 suppresses aggravation of the axial runout by the dispersion in the tightening torque. Easy to use. 02 Excellent chip discharge ・Screw clamp system ensures sufficient pocket size, so chips are smoothly discharged. 03 Low cutting force geometry ・Adopting a low cutting force edge geometry enables to machine various work materials. 04 Multi-flute type is standardized. ・Multi-flute type focused on machining efficiency was standardized. 05 Long-life insert with the latest coating ・Adopt layer-thickening technology for PVD Coating layers enables double the tool life of conventional products. 4 types are available for diverse cutting materials: JS4060 with greatly improved wear resistance, JP4120 with excellent heat resistance, JM4160 that has superior adherence and SD5010 with DLC Coating. Features of AJ Coating series ・Adopt an AlTiN layer with a new composition created by increasing the Al content of conventional layers. ・Excellent wear resistance, chipping resistance, and heat resistance! New technology!! ・The new layer with high Al content employs a new composition and optimizes the structure to improve wear resistance and chipping resistance! ・Adopt a low-friction-effect coating with excellent welding resistance as the top-most surface layer. This reduces welding to the work and decreases cutting force! Features ・Adopt a fine carbide substrate with an excellent balance between wear resistance and toughness and the new "AJ Coating" to provide improved wear resistance and chipping resistance.
