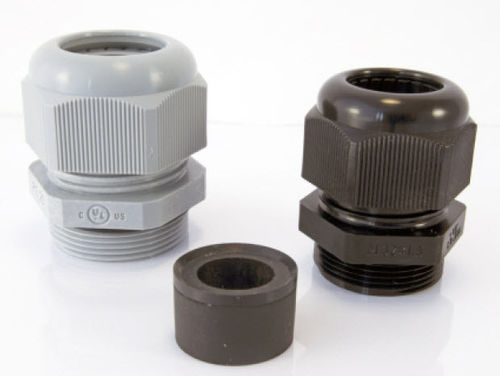

Polyamide cable gland BSTP-M /R seriesIP68straight
Add to favorites
Compare this product
Characteristics
- Material
- polyamide
- Protection level
- IP68
- Other characteristics
- straight
- Cable diameter
Min.: 2 mm
(0.08 in)Max.: 48 mm
(1.89 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Configuration
Dome nut: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Gland body: Polyamide PA6 V-2
Connecting thread: metric as per EN 60423
Properties
Reducing sealing ring for small cable diameter. Integrated
anchorage, wide sealing and clamping range, easy -to-install.
Temperature range: -20°C / +100°C
Protection grade: IP68 - 5 bar
Test standard: EN 50262 / UL 514B
VDE licence: 132919
UL/CSA-File: E140310
SEV licence: 01.1135
