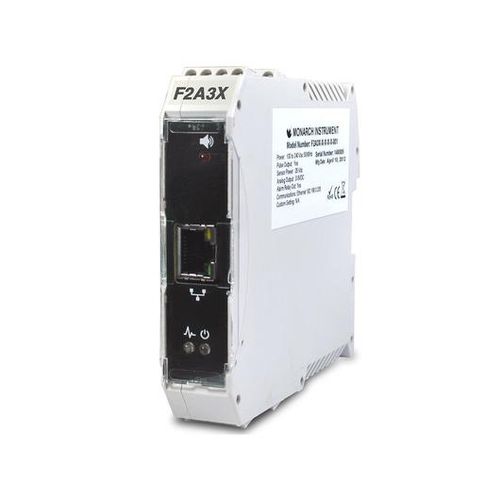

Analog frequency converter F2A3X

DIN railcompactprogrammable

The F2A3X Frequency to Analog Converter is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5Vdc) or current (4-20mA) output. The output signal is electrically isolated from the input signal and input power source effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software. A NIST Certificate of Calibration is included. Typical Uses: • Process monitoring over networks •Tachometer signal generator • QC and R&D • Engine performance • Signal conditioning • Data acquisition • Motor or pump monitoring FEATURES: Standard DIN rail mounting Ethernet communications available 5 to 999,990 RPM range (0.083 to 150 kHz) Compatible with most speed sensors (TTL) 12 to 24 V dc input power Alarm setpoint with optional relay output Pulse repeater output User-configurable View real-time data on PC 10 V dc or 5 V dc sensor excitation NIST Traceable Certificate included
