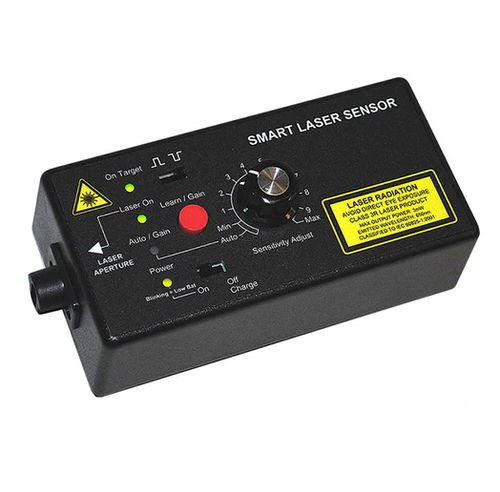

Rotational speed sensor SLS

lasersmart

Monarch's SLS is an internal battery-powered optical sensor utilizing a visible Class 3R Laser for a TTL pulse output. This sensor includes a power supply, cable, T-5 Reflective Tape, and NIST Calibration Certificate. The Smart Laser Sensor is an internal battery-powered optical sensor utilizing a visible Class 3R Laser for a TTL pulse output. This sensor has an operating range up to 65 feet with reflective tape and up to 3 feet* [1 m] contrasting color targets, bolt heads, or blades. Includes 115/230 V ac PR universal charger, (1) SLS-CA-BNC output cable, 12 inches of T-5 Reflective Tape, and NIST Certificate of Calibration. *Performance subject to the intensity of ambient light irradiation. "Smart" auto gain provides in picking up target reflection On-Target Indicator TTL pulse output signal inverter switch Manual sensitivity knob provides dynamic fine-tuning of sensor response On/Off or Recharge/Battery Condition Indicator Class 3R visible laser Signal/Pulse/RS232 output DIN connector port External DC power or port Tripod Mounting Bushing (¼ - 20 UNC)
