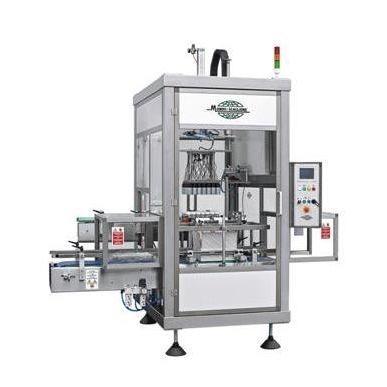

Vertical case packer M.P.1/2

horizontalautomaticbottle

Machine suitable to insert automatically bottles inside "American" style cases. Features • A motorized bottles conveyor feeds bottles on a single lane. Stainless steel frame, adjustable guides, adjustable supporting pivots, PVC feet, plastic chain with low friction rate. • A pusher group with electro-pneumatic control prepares the bottle group to be packed automatically and according to the programmed packing pattern. • A counting system with photoelectric control, feeds a predetermined number of bottles to the pusher. After counting and with product staying under the photocell, the pusher starts. • A platform, to collect the bottle pack, contains pushed bottles ready to be picked-up. A photocell, if engaged and after an established number of pushes, signals that bottle pack is ready to be picked up by the picking head. In case the photocell is engaged after a wrong number of pushes, machine goes in alarm and on display it is indicated that a bottle could be fallen or that during previous cycle a bottle could not have been picked-up. • A motorized case conveyor, complete of stop and selection groups, feeds, positions and downloads the product automatically. Stainless steel frame, adjustable guides, acetal plastic chain with low friction. • Case presence and position detectors. • A centring group with electro-pneumatic control allows the case centring for a correct bottle insertion into cases. • Movement of hold-head carriage with 2 axes, vertical and horizontal, with electro-pneumatic control. • Centralized control panel. • Machine managed by a PLC Siemens series S7.
