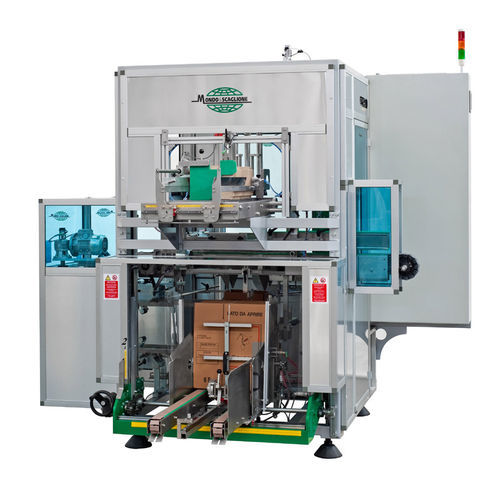

Automatic case former-packer-sealer F/I/I/N 1

adhesive tape

Machine suitable to erect the case, to insert bottles and carton divisions inside it and to close bottom and top flaps with adhesive tape. Features • Flat case magazine adjustable to different sizes. • Flat case pick up group mounted on a motorized axe electromechanically controlled, with positioning • managed by encoder. • Carton divisions magazine positioned on top of the case magazine, with acetal plastic chain, pitch-topitch • advancement electro-pneumatically controlled. • Movement of the divisions head on two controlled axis electro-pneumatically controlled. The division • is inserted on the pack of bottles previously prepared. • Case and division pick up with an air depression system managed by Venturi. • Motorized bottles conveyor that feeds bottles to the machine on a single row. • Bottles pushing unit electro-pneumatically controlled that prepares bottles on a layer as per the • requested configuration. This system allows to handle shaped bottles too (truncated cone, rectangular, • squared, etc.) avoiding obstruction issues. • Bottles pick up by means of a pick up head with a vertical movement electromechanically controlled. • This system enables bottles pick up and lifting and, after the translation of the lower platform, product • unloading inside the case previously erected in a lower position. Flaps case opening is managed by a • centering basket electro-pneumatically controlled. • Transfer of the filled case from the packing area to the bottom and top taping area, with the next case • unloading on an electromechanically controlled axis. • Bottom and top taping units.
