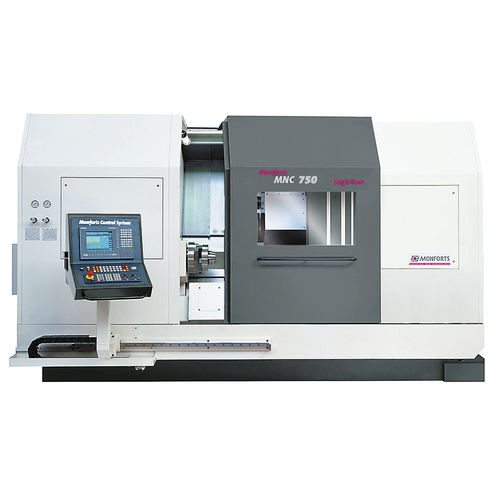

CNC lathe MNC 750

horizontal2-axis4-axis

The MNC is a high-performance lathe for 2- and 4-axis machining with upper and optionally lower tool turret. A very robust construction and a swing diameter of up to 1,000 mm are the special features of this series. The use of driven tools enables the production of eccentric bores, threads or milled surfaces. With a counter spindle, the rear machining of the workpieces can be carried out entirely in the sense of complete machining. Available with Fanuc or Siemens control Benefits - Absolutely wear-free hydrostatic guidance in the Z-axis - Weight-compensated cross slide with backlash-free roller guide - Torsion-resistant construction as inclined bed - Y-axis available as option - Tailstock or counter spindle available as options - Bezel or bottom slide available as options - Available with Siemens and Fanuc control system - Spindle unit with concentricity accuracy of approx. 0.003 mm
