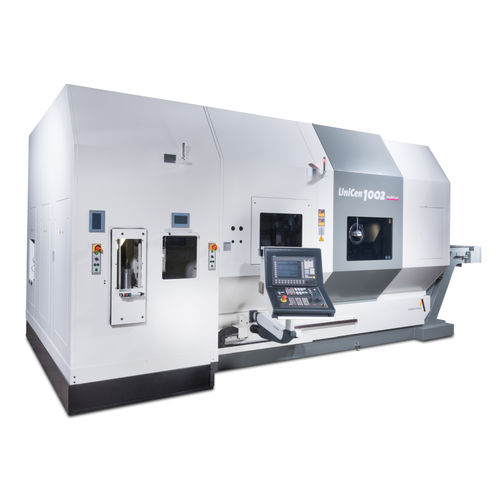

Drilling turning-milling center UniCen 1000
CNChorizontal2-axis

drilling turning-milling center
drilling turning-milling center
drilling turning-milling center
drilling turning-milling center
drilling turning-milling center
drilling turning-milling center
drilling turning-milling center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Type
horizontal
Number of axes
2-axis, 4-axis, 5-axis
Structure
inclined bed
Other characteristics
drilling, hydrostatic, precision
Diameter

Max.: 1,000 mm
(39.37 in)

Min.: 0 mm
(0 in)

Description

The UniCen is a turn-mill center with integrated B-axis, in which all therequirements for complete machining were implemented constructively: Turning: 2-axis as standard, 4-axis as option Milling: up to 5 axes simultaneously Drilling: Positioning drilling/milling with holding brake The workpiece is clamped on a single machine and then finished. With up to five interpolating axes, even complex free-form surfaces can be produced. Tool magazine UniCen: The NC-controlled tool changerworks independently of part machining. The chain magazineThe standard version has 36 magazine places with HSK 63/100,optional Capto C6. Magazines with 60 or 90 places are optionally available. On request also available with tool drawer forconvenient tool change in the magazine.
