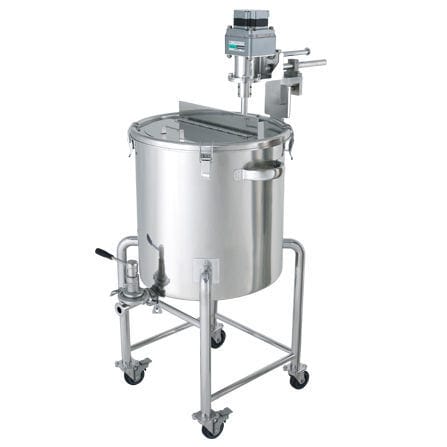

Dynamic mixer KU-KTT-L series

batchfor liquidsvertical

A unit with a Bernouy stirrer, stainless steel container, and valve. It is excellent in stirring with reduced foaming. The container uses a one -tapered type that achieves a smooth horizontal emission by diagonally using the bottom plate. ・ 35-150L selectable capacity lineup. ・ LPS valves connected to the helped are adopted for the exhaust outlet. ・ It is easy to move because it has caster legs. ・ The stirrer can be selected from two types of connection methods and two motors (electric motors/air motors). [Container body] Container body ... SUS304 Packing ... Silicon rubber (Food Sanitation Law Compatible) Casters ... SUS+urethane car (2 with inner stopper) Surface treatment ... Inner and outer buff polishing Usage conditions: Attotive pressure (non -reduced voltage is not allowed) [mixer] Vertical stirrer connection part ... 4.5S Helle Liquid part material ... SUS316 or 316L Rotation speed: Up to 800rpm or 1050rpm * The specifications of the stirrer vary depending on the model. For more information, see each detail page. List of stirring machines
