Storage tank HT-CTL series
dischargeliquidsstainless steel

storage tank
storage tank
storage tank
Add to favorites
Compare this product


Characteristics

Function
storage, discharge
Product applications
liquids
Material
stainless steel
Type
hopper
Applications
industrial, for food applications, for chemical applications, for pharmaceutical applications, for the cosmetics industry
Capacity

10 l, 15 l, 20 l, 25 l, 35 l
(2.642 gal, 3.963 gal, 5.283 gal, 6.604 gal, 9.246 gal)

Description

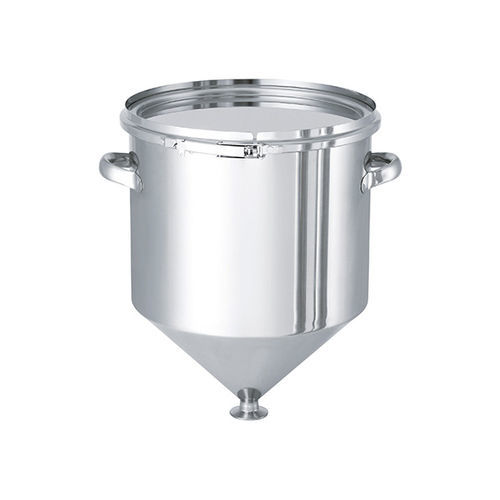

A band-type stainless hopper container that can fix the lid with one touch. ○Can be attached to large containers and equipment as charging containers. ○Since the bottom plate has a hopper shape, it has excellent liquid discharging properties. ○The packing is made of silicone rubber which complies with the Food Sanitation Law. ○The boundary between the hopper and the body has an R-structure that prevents dirt from accumulating. The container body ... SUS304 Lid [CF] ... SUS304 Handle lever band [LB] ... SUS304 Packing ... silicon rubber [PQL (Food Sanitation Law compliant products) ● Surface treatment: the inner and outer surfaces buffing ● use conditions: atmospheric pressure (pressurization and depressurization is impossible)
