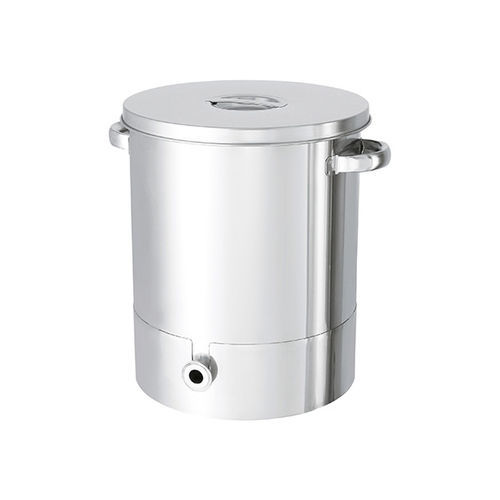

Storage tank KTT-ST series

dischargeliquidsstainless steel

Storage and discharge container with inclined bottom plate. Standard type with cover lid. ○Since the bottom plate is inclined in the discharge direction, all liquid can be discharged. ○Since the discharge port is attached to the side of the container, the piping can be rotated quickly. ○It is made of a thin plate with a thickness from t 1.0 to t 2.0 and can be easily handled when moving or cleaning containers. ○The corner of the bottom has an R-structure that prevents dirt from accumulating. ○Liquid can be sent by connecting a pump. Container Body/Hakama ... SUS 304 Lid [SF/HF] ... SUS 304 *Stock lid [SF] for KTT-ST -30 to 47 H, and flat lid [HF] for KTT-ST -565 and above are included as standard. KTT-ST -30 to 47 H can be changed to a roof cover. Handle ... SUS 304 ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.) Capacity: 20 L, 25 L, 35 L, 45 L, 65 L, 80 L, 100 L, 150 L, 200 L, 300 L, 400 L, 500 L, 750 L, 1000 L Other capacities are available by special order, so please contact us.
