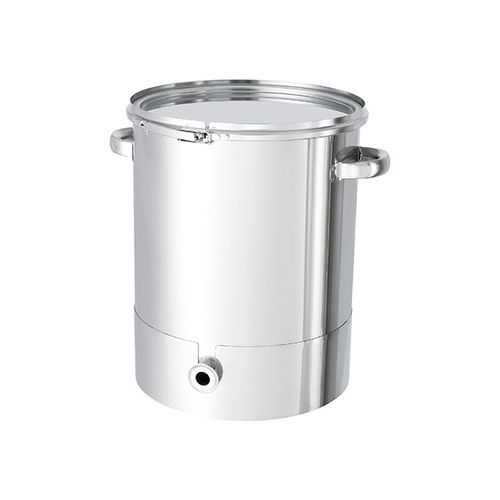

Storage tank KTT-CTL series

dischargeliquidsstainless steel

Storage and discharge container with slanted plate. A sealed container that can be sealed easily with a band. ○Since the bottom plate is inclined in the discharge direction, all liquid can be discharged. ○Since the discharge port is attached to the side of the container, the piping can be rotated quickly. ○The packing is made of silicone rubber which complies with the Food Sanitation Law. ○It is made of a thin plate with a thickness from t 1.0 to t 2.0 and can be easily handled when moving or cleaning containers. ○The corner of the bottom has an R-structure that prevents dirt from accumulating. ○Liquid can be sent by connecting a pump. Container Body/Hakama ... SUS 304 Lid [CF/MF] ... SUS 304 *CTL lid [CF] for KTT-CTL -30 to 47 H, and sealing lid [MF] for KTT-CTL -565 and above are included as standard. Handle ... SUS 304 Lever Band [LB] ... SUS 304 Packing [PQL/PQB] ... Silicon Rubber (Food Sanitation Law Compliant Product) *For KTT-CTL -30 to 47 H, L-type packing [PQL] is supplied, and for KTT-CTL -565 and above, B-type packing [PQB] is supplied as standard. ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
