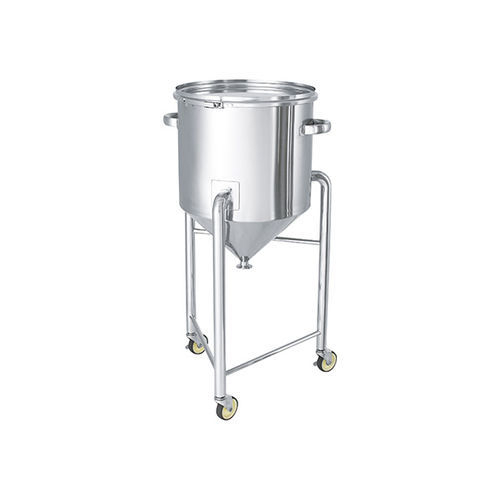

Stainless steel hopper container with caster legs.
Band type that can fix the lid with one touch.
○Since the bottom plate has a hopper shape, it has excellent liquid discharging properties.
○Caster legs are attached, so the container can be moved between processes.
○There is a space under the hopper container for another container for the receiver (subdividing).
○The boundary between the hopper and the body has an R-structure that prevents dirt from accumulating.
○Since it is a made-to-order product, "Dimension" "Material" can be changed, and special processing can be done according to the application.
Container Body/Leg ... SUS 304
Lid [CF/MF] ... SUS 304
*CTL lid [CF] for HT-CTL-L -30 to 47 H, and sealing lid [MF] for HT-CTL-L -565 and above are included as standard.
Handle/Lever Band [LB] ... SUS 304
Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces)
Packing ... Silicon Rubber [PQL/PQB] (Food Sanitation Law Compliant Product)
*For HT-CTL-L -30 to 47 H, L-type packing [PQL], and for HT-CTL-L -565 and above, B-type packing [PQB] is supplied as standard.
●Surface Treatment: Inner and Outer Surface 0.2Ra
●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
