Storage tank HT-ST-L series

dischargeliquidsstainless steel

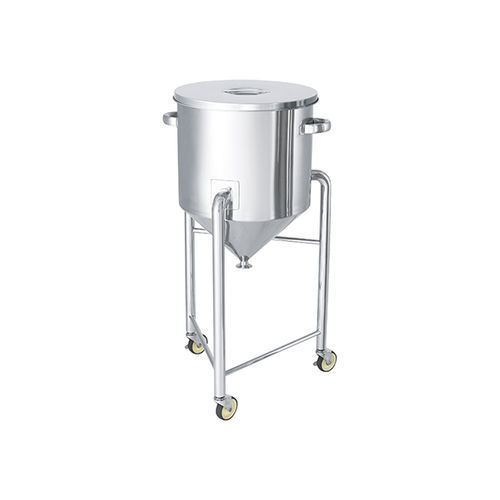

Stainless steel hopper container with caster legs. Standard type with cover lid. ○Since the bottom plate has a hopper shape, it has excellent liquid discharging properties. ○Caster legs are attached, so the container can be moved between processes. ○There is a space under the hopper container for another container for the receiver (subdividing). ○The boundary between the hopper and the body has an R-structure that prevents dirt from accumulating. ○Since it is a made-to-order product, "Dimension" "Material" can be changed, and special processing can be done according to the application. Container Body/Leg ... SUS 304 Lid [SF/HF] ... SUS 304 *Stock lid [SF] for HT-ST-L -30 ~ 47 H, and flat lid [HF] for HT-ST-L -565 and above are included as standard. HT-ST-L -30 to 47 H can be changed to a roof cover. Handle ... SUS 304 Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces) ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
