Storage tank HT-CTH-L series

dischargeliquidsstainless steel

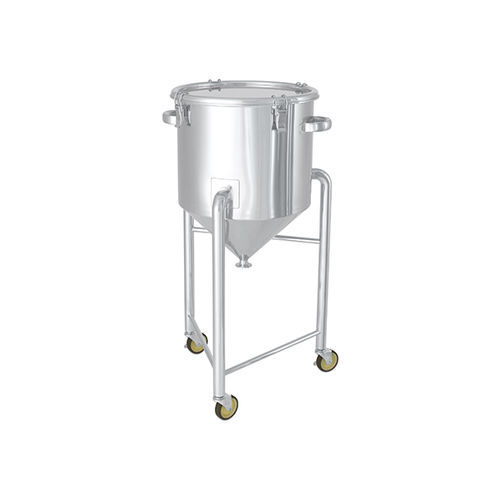

Stainless steel hopper container with caster legs. Clip type that can easily fix the lid. ○Since the bottom plate has a hopper shape, it has excellent liquid discharging properties. ○Caster legs are attached, so the container can be moved between processes. ○There is a space under the hopper container for another container for the receiver (subdividing). ○The boundary between the hopper and the body has an R-structure that prevents dirt from accumulating. ○Since it is a made-to-order product, "Dimension" "Material" can be changed, and special processing can be done according to the application. Container Body/Leg ... SUS 304 Lid [MF] ... SUS 304 Handle/Catch Clip ... SUS 304 Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces) Packing ... Silicon Rubber [PQA/PQB] (Food Sanitation Law Compliant Product) *Type A packing [PQA] for HT-CTH-L -30 to 47 H and type B packing [PQB] for HT-CTH-L -565 and above are included as standard. ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.)
