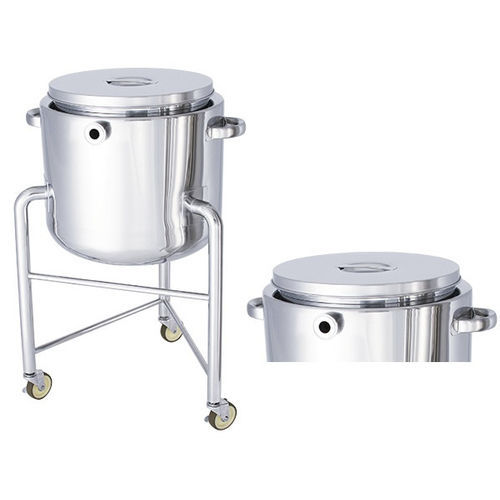

Stainless steel container with pressure resistant jacket
Inner tank is a hopper type that is easy to discharge.
○The jacket part (outer cistern) can be filled with water to keep the contents warm and cool.
○Only the jacket part can be used when applying pressure (0 ~ 0.18 MPa).
○Since the inner tank is hopper shaped, it has excellent liquid discharge properties.
○A separate receptacle (subdividing) can be placed under the outlet at the bottom of the receptacle.
○As it is a build-to-order product, you can change "Dimension" "Material" or customize it to suit your needs.
[HT-ST-TJ-L] Specifications
Container Body/Jacket ... SUS 304
Lid/Leg/Handle ... SUS 304
Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces)
Jacket Nozzle ... 1S Helle
[HT-CTL-TJ-L] Specifications
Container Body/Jacket ... SUS 304
Lid/Leg/Handle ... SUS 304
Lever Band ... SUS 304
Packing ... Silicon Rubber (Food Sanitation Law Compliant Product)
Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces)
Jacket Nozzle ... 1S Helle
[common specification]
●Surface Treatment: Inner and Outer Surface 0.2Ra
●Terms of Use
Body (inner tank): Atmospheric Pressure (Do not pressurize or decompress.)
Operating temperature of main unit: below boiling point of content liquid
Jacket (outer cistern): 0 ~ 0.18 MPa
Jacket Operating Temperature: Cold to Hot Water
●pressure proof inspection certificate
