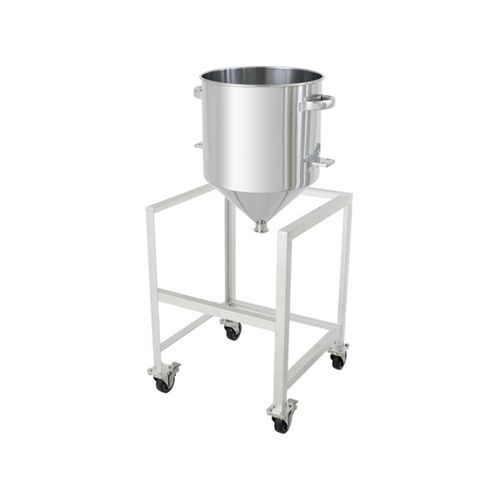

Discharge tank HT-ASC series

for liftingliquidsstainless steel

Stainless steel container with a movable frame. Hopper type with excellent liquid discharge. ○The container and frame can be separated and fixed according to the work. ○The container and frame can be mounted with thumbscrews, and tools are not required. ○Since the container can be removed from the stand and washed, the washing time can be shortened. ○It is possible to make only the container. ([HT-BRK]) ○The container and frame are made of durable and rust-resistant SUS 304. ○HT-ST-ASC is a cover type, HT-CTH-ASC is a clip sealed type, and HT-CTL-ASC is a band sealed type. ○For containers of 200 L or more, fittings (holes) are attached for lifting. [common specification] Frame (Angle) ... SUS 304 Caster Material ... SUS + Urethane Truck (With Inner Stopper 2 Pieces) Hanging Lug (635, 77, 100, 100 H sizes only) ... SUS 304 *Size 100 and 100 H lids have 2 handles. ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.) Capacity: 35 L, 45 L, 60 L, 80 L, 100 L, 150 L, 200 L, 300 L, 400 L, 500 L *Other capacities are also available. [HT-ST-ASC] Container Body/Lid/Handle ... SUS 304 [HT-CTH-ASC] Container Body/Lid/Handle/Catch Clip ... SUS 304 Packing ... Silicon Rubber (Food Sanitation Law Compliant Product)
