Belt conveyor TB40 series
low-profile belthorizontaltransport

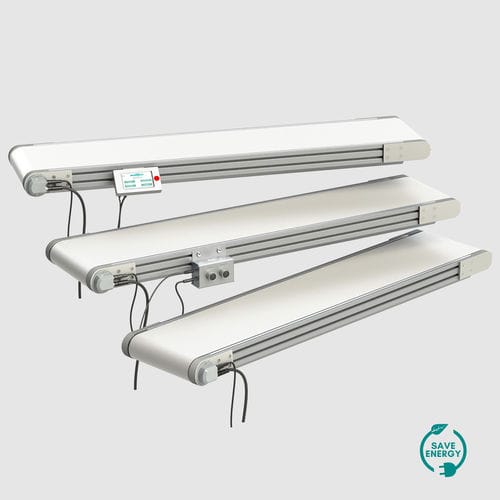

Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 2
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 3
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 4
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 5
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 6
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 7
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 8
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 9
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 10
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 11
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 12
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 13
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 14
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 15
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 16
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 17
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 18
Belt conveyor - TB40 series - MONTECH - low-profile belt / horizontal / transport - image - 19
Add to favorites
Compare this product


Characteristics

Technology
belt, low-profile belt
Form
horizontal
Function
transport
Construction
modular, compact
Drive mechanism
electric drive, drum motor
Transported product
parts, for plastics
Sector
construction, for the automotive industry, for assembly lines, medical, for watchmaking
Maximum load

200 kg
(440.925 lb)

Speed

Max.: 33,500 mm/min
(21.98 in/s)

Min.: 250 mm/min
(0.16 in/s)

Effective width

Max.: 800 mm
(31 in)

Min.: 300 mm
(12 in)

Description

The TB40 belt conveyor features a 24 V DC motor integrated into the drive roller resulting in a very compact, low-profile design. It is ideal for conveying parts, products, or product carriers between processing stations. The modular design and construction make it easy to configure the conveyor for application-specific requirements, or to integrate multiple units to form complete transport systems. Conveyor chassis are available in widths ranging from 300 mm to 800 mm. The length can range from 360 mm to 6 m. The maximum load in conveying mode is 200 kg. As compared to customary asynchronous geared motors, you can save electricity and money. If the TB40 conveyor is used in 3-shift operation for a whole year without interruption, you will save 621 kWh electricity and approximately 285 euros. The 24 V DC patented motor that is used for the TB40 conveyor are energy efficient and meet the EU minimal requirements of Premium Efficiency Class IE3; they exceed the Super Premium Efficiency Class IE4 that is planned for the future. The TB40 belt conveyor, with its integrated 24 V DC motor and modular design, optimizes fast and precise processes, allowing for efficient transportation of parts and products between processing stations. Due to the integrated 24V motor in the drive roller, the conveyor belt TB40 is very compact in its design and complies with low-voltage guidelines. This is a great advantage for system builders: With a DC voltage of 24V, no protection against touching is required; these voltages are considered to be harmless to adults, children, and animals.
