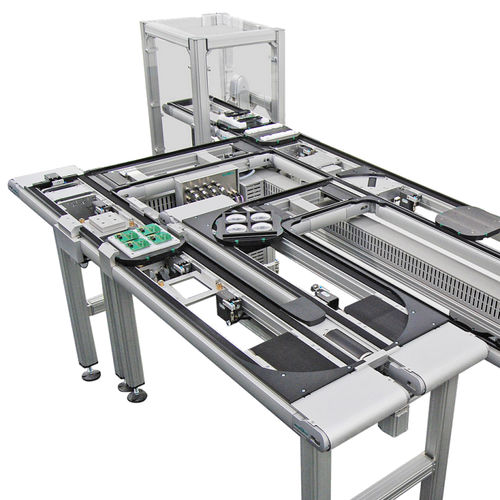

Belt conveyor LT40

pneumaticdouble-belthorizontal

The LT40 transfer system is based on a double toothed belt system, through which the individual workpiece carriers can be transported at speeds of up to 20 m/min. The LT40 is available in three system sizes and six workpiece carrier sizes; so there is an optimal configuration for every application. The transfer plates or product carrier come in six different sizes and can accommodate loads up to 16.8 kg. They can be equipped with RFID technology so that they can be identified at any time. The system belt conveyors are pre-assembled and tested according to customer specifications with the selected components before delivery. Due to the dovetail connection, all system components can be easily and continuously shifted and repositioned with the belt conveyor. Transfer plate or product carrier are diverted by lateral transport, 90° deflection, 180° deflection or a switch. A shock-absorbing pneumatic separating unit/stopper, which is used as a stopper and pre-stopper, is used for stopping, separating and decelerating one or more incoming workpiece carriers. For executing operations on the transfer plate or product carrier, an integrated indexing unit in the conveyor or a positioning unit with a 1000N pressure and a placing unit with up to 60 kN vertical load are available. A lifting/turning unit or a lift can be installed on the transfer system upon request.The efficient transfer system LT40 ensures precise material transport with 24V drives while meeting the highest requirements for energy efficiency and precision.
