Two-track conveyor TB30 series

belthorizontalelectric drive

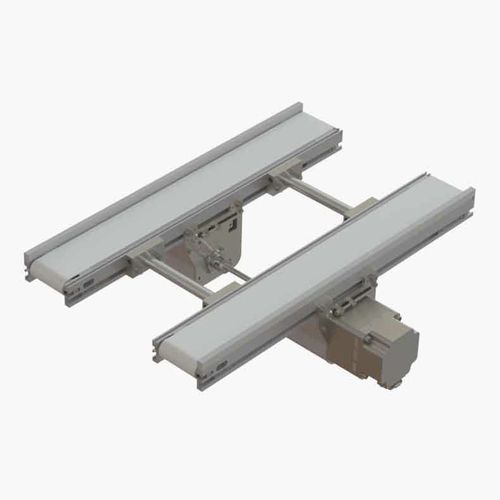

The TB30 conveyor in tandem configuration is ideal for the transport of larger pallets and other dimensionally stable, bulky products. The width and the position of the support surfaces are customized to achieve the optimal contact area for the product. The two conveyor chassis are connected by an elastomer coupling and are driven cost-efficiently with a single motor. The chassis widths, and the gap between them are application-specific - up to a maximum width of 39.4 in (1000 mm). The modular design featuring standardized components make the TB30 tandem conveyor a versatile choice. The conveyor length and the distance between belts are manufactured to customer specifications. Power transmission to the belt is highly efficient, and without slip. When operating with higher loads, and especially with product accumulation, the chassis requires the sliding plate insert. A variety of standard chassis widths and drive configurations, as well as a wide range of accessories such as side guides and floor stands are readily available. The TB30 conveyor is available in standard widths ranging from 60 to 250 mm, and a maximum length of 10 m. It is available as a single-belt or double-belt configuration. A tandem chassis version, driven by a single motor, is also available for the transport of larger pallets and other dimensionally stable products.
