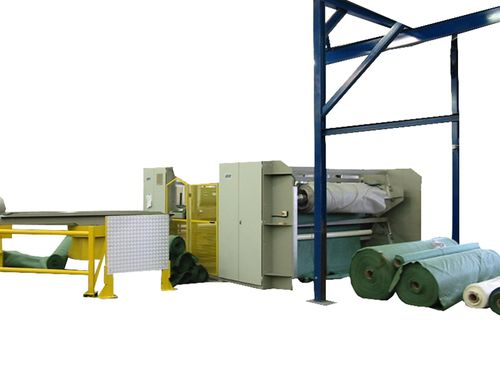

Automatic splicing machine R10-GEO

for fabric

AUTOMATIC SYSTEM FOR JOINING OF 2 OR MORE GEOTEXTILES PRODUCT BY MEANS OF LONG SIDE SEWING AND FOLLOW UPWIND ON PAPER CORE. The purpose of the plant is to join with a seam 2 geotextile fabrics creating a single product with the same size as the sum of the two fabrics on work avoiding the overlapping in the length wise of each layer for 70/80 cm of fabrics to preserve the contamination of the material contained in one layer with the next one. Mainly advantages are: - Reduction of wastage of fabric (absence of overlapping ) – Optimization of the surface covering - Reduction of transportation cost due to optimization of surface covering and absence of overlapping - Optimization of the manpower due to the absence of rolls handling for overlapping Type of assembling sewing depends by the product in use and by the performances requested to the same in terms of resistance and duration. The machine works polyester or polypropylene geotextile having a maximum weight of 850 gsm, thickness up to 4mm and maximum working width up to 3000mm (BASE WIDTH) or up to 5400mm (WIDE MACHINE).
