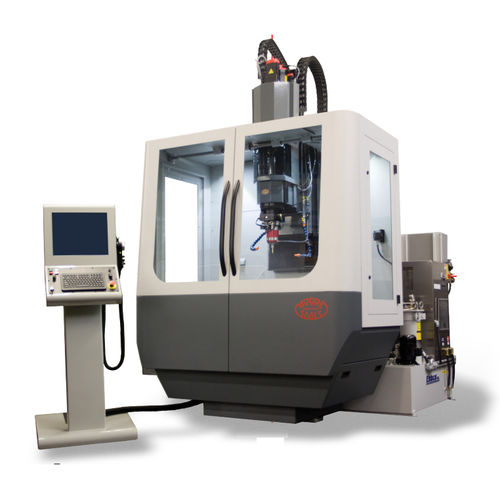

Surface grinding machine 500 series

toolCNC6-axis

The Moore Tool Company, a leader in precision machine tool design and manufacture, produces a complete line of jig grinding machines and accessories. The 500 Series Jig Grinder is available in three models (CPZ, CPZ-E and CPWZ) to address your specific precision grinding requirements. These CNC-controlled jig grinding machines have multiple, programmable axes (four sim Features • Base assembly provides unmatched geometric accuracy and repeatability • Fanuc multi-axis control with PC front-end with customized touch-screen user interface • Moore ProGrind® for improved tool and labor cost savings Moore ProGrind® Options • State-of-the-art sensor technology (Moore AutoSize® and Moore AutoGrind) • Automatic tool changer (up to 20 tools) • Automatic tool changer electric spindle: 10,000 to 60,000 rpm • Air spindles: 9,000 to 175,000 rpm (five spindles) • Electric spindles: 15,000 to 80,000 rpm (three spindles) • Flood coolant system with chiller • Machine enclosure • Single-axis or two-axis rotary tables • Fire suppression system • Vapor extraction system • On-machine inspection/probing
