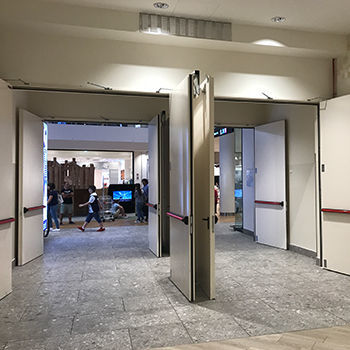

Hinged door BIG FLY FIRE

pedestrianinsulatedlarge

The large hinged door can be made with one or two doors. Hinges with bearings, allows safe operation and guarantees self-closing. They are the perfect solution for medium and large rooms, or where it is not possible to slide any doors. TECHNICAL PRODUCT INFORMATION Monobloc leaves made of continuous modules of insulated sheet steel panels insulated with insulating materials, coplanar insulated joints, without lower rebate. Total thickness 80mm. Lock with cylinder positioned on the main door, black double lever safety handle with internal steel core, secondary door with lower and upper self-locking device. L" shaped frame in steel profile with walling clamps (to be paid by the customer), n° 02 sturdy door hinges, thermo-expanding gasket inserted in the sash rebate, rebate gasket, finish with only one Curtain of primer in RAL 7035 grey epoxy-polyester for internal use. Door supplied with identification plate with all the references applied to one of the doors. Mandatory accessories: n° 01 door closer pump per sash, n° 01 closing regulator for the right sash closing sequence. Maximum opening 120° with door closer. Door weight approx. 60 kg /m². wall hole Door certified according to UNI 9723 and approved in compliance with the Ministerial regulations in force. Fire doors and windows are normally used for internal compartments and are made for this purpose. According to their dimensions and particular functions, fire doors are to be carefully designed. OPTIONAL: Panic bar Electromagnet kit Supply of smoke and heat detectors on request
