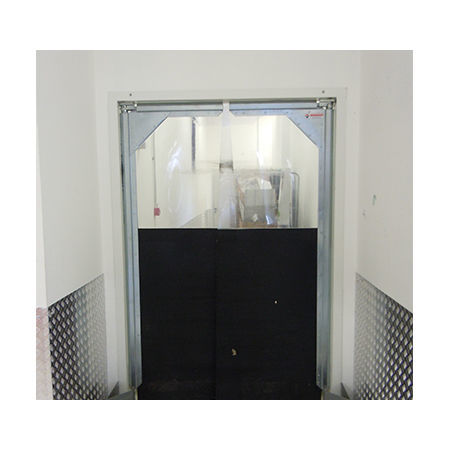

Hinged door

stainless steelPVCindoor

The pvc hinged door allows maximum transparency and the continuous flow of vehicles in total safety in small to medium wall compartments. With one or two leaves it can be installed both inside and outside buildings, with push opening and spring reclosure. The supporting structure, upright and upper crossbar are supplied as standard in galvanised steel; for food or chemical industries, they can be supplied with stainless steel structure. TECHNICAL PRODUCT INFORMATION The doors are made with a bearing structure in galvanized steel profile, cold bent with monolithic structure. Each door leaf is equipped with an opposing arm closing device with adjustable force torsion spring incorporated in the supporting structure. The hinges rotate, in the lower part, on steel balls and, in the upper part, within a seat with self-lubricating bushings. The flexible panels are made of top quality materials specifically designed to guarantee maximum resistance and durability even in very severe conditions. P.V.C. are used (Polyvinyl chloride) with the addition of plasticizers that make it possible to use it even at low temperatures (down to -35°C) while maintaining the characteristic of transparency and resistance to impact and abrasion. Black anti-abrasive rubber with alternative Curtain inserts to increase tear resistance. The door can only be installed in the passageway light compartment. SPECIFICATIONS With one or two leaves it can be installed both inside and outside buildings, with push opening and spring reclosure.
