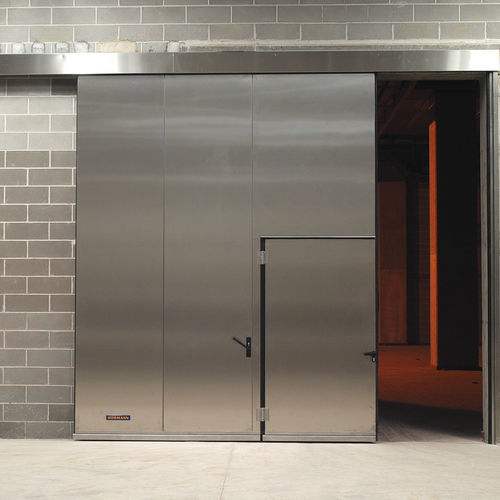

Sliding door

stainless steelsafetywith bottom guide rail

Sturdy and safe sliding doors represent a practical and safe solution for compartments where space is limited; the lateral sliding allows the creation of large compartments with reduced lateral dimensions. Made with one or two opposing or overlapping doors, they guarantee maximum safety. They are a valid solution for food, chemical and pharmaceutical environments. The sliding door is made up of 52 mm thick sashes with respective internal perimeter frames in 20/10 thick galvanised steel profile; the sashes are completely covered with smooth stainless steel sheets; the external surface is completely smooth with a satin effect . The insulation is guaranteed by the injection of self-extinguishing polyurethane foam according to DIN 4102 class B2, with a density of not less than 43/45 kg/m³, obtained by means of an expansion process under press which ensures a high degree of thermal insulation. We prevent scratches by applying adhesive film to be removed after installation. The upper rail is fixed in veletta or to the ceiling by special brackets designed and manufactured by us in stainless steel. The upper slide is guaranteed by nylon olives which guarantee silence and great manoeuvrability. Everything is covered with a stainless steel sheet casing and siliconised in the upper part. (Optional) With the sliding door on the floor, stainless steel wheels with double bearings are inserted in the lower tube. The upper and lower closure is made with nylon brushes with stainless steel support.
