Sectional door

steelgalvanised steelindoor

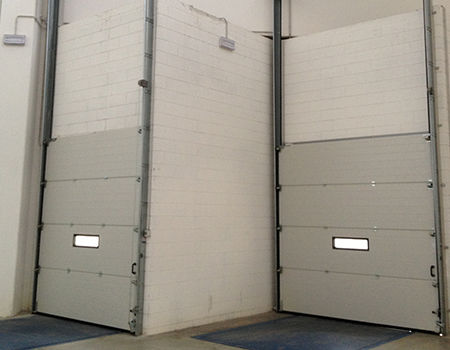

The Moreschi sectional doors offers a wide choice of construction variants and is able to meet the different needs of the company. During the design phase, our technicians are able to indicate the best sliding solution, so as to optimise the overall dimensions and improve efficiency. The sectional door opens upwards by sliding internally in special side guides of minimum dimensions, thus guaranteeing ample manoeuvring space for handling. The absence of floor guides makes the passage of all vehicles easy. The sectional door is made up of 42mm thick elements with hot-dip galvanised steel sheet cladding and polyester-based primer with an embossed effect. The panel is made up of panels with a horizontal uniform horizontal corrugated slatted pattern 125mm pitch and standard heights of 625/750mm (maximum compartment width 6000mm) or alternatively 375/500mm (maximum compartment width 8000mm). Thanks to the special design of the door elements, there is no risk of crushing fingers on the outside or inside. Insulation guaranteed by 100% CFC-free polyurethane foam with a continuous injection process that ensures a high degree of thermal insulation. Internally, the panel is reinforced with sturdy steel plates that guarantee secure fastening of the hinges and all other accessories. The lateral and upper sliding guides are made of steel with a galvanised finish, suitably shaped so as to obtain maximum rigidity and minimum overall dimensions for assembly. The suspension of the sliding guides on the ceiling is carried out by means of galvanised steel brackets with slots to be adapted to each installation situation.
