Olive oil production line PROFY

automatic

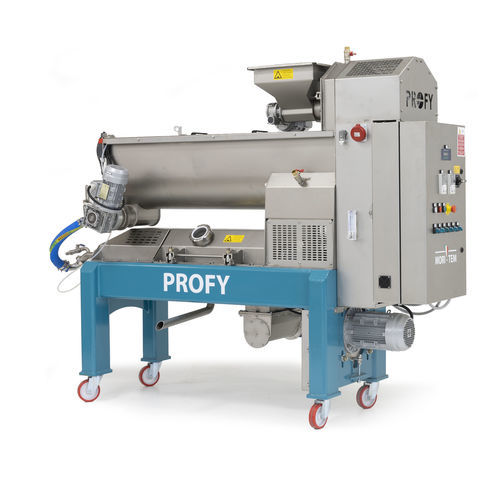

OLIOMIO PROFY olive oil plant is an all-in-one equipment consisting of the FR_250 knife/hammer crusher, the 2GL_100 crushing unit and the DMT_2 decanter equipped with a waste discharge pump. The crusher discharges the paste directly into malaxer no. 1 which, once filled, automatically transfers it to malaxer no. 2. Then the pump of malaxer no. 2 transfers it to the decanter. It is very important, for the final quality of the product, that the difference in paste temperature between inlet and outlet of the crusher does not exceed 1-2 degrees. The malaxing process takes place in a closed malaxer to avoid excessive oxidation of the paste. The horizontal decanter that separates the liquid from the solid has been developed to obtain the highest quality; the 2.0 auger has been designed to obtain a cleaner product, as there is no increase in temperature during extraction. It is recommended to combine the Oliomio Profy with the DLE Mini deleaferwasher and the CPF.1. oil collection vat with a 20×20 cardboard filter. Standard voltage: 9kW 3ph 380V 50Hz. (5-pole socket (3 phases + neutral + ground) 32A) Optionals: – crusher inverter – temperature controller
