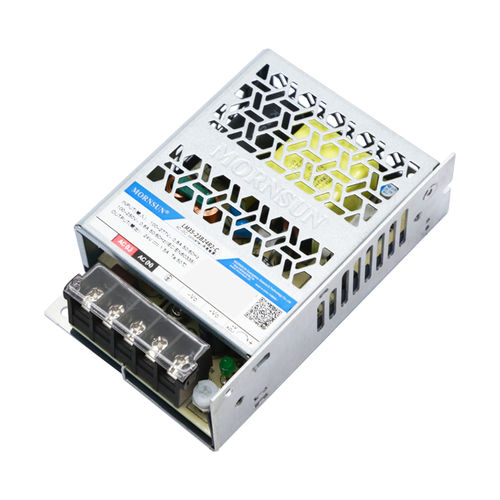

AC/DC power supply LM35-23BxxR2 series
single-outputstabilizedswitching

AC/DC power supply - LM35-23BxxR2 series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - single-output / stabilized / switching
AC/DC power supply - LM35-23BxxR2 series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - single-output / stabilized / switching
Add to favorites
Compare this product

Go to the MORNSUN Guangzhou Science & Technology Co.,Ltd. website for more information

Characteristics

Type
AC/DC
Output
single-output, stabilized
Technology
switching
Network
single-phase
Protection
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
Connection
with screw terminal block, with safety terminals
Mounting
rack-mount, built-in
Certifications
CE
Features
compact, closed frame, case
Applications
for industrial applications, for telecommunications equipment, for LED lighting, rugged
Other characteristics
high-performance, high I/O isolation
Input voltage

Max.: 430 V

Min.: 80 V

Output voltage

Max.: 48 V

Min.: 5 V

Current

Max.: 7 A

Min.: 0.8 A

Power

35 W, 36 W, 38.4 W

Description

LM35-23BxxR2 series is the ultra-small Mornsun second-generation new industrial standard enclosed power supply, which has innovated the industrial power supply standard from the aspect of dimension, performance, technology, and structure. It features universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UUEN/IEC/BS EN62368, EN/lEC60335, EN651558, EN62477, GB4943 standards, and they are widely used in areas of industrial, LED, streetlight control, electricity, security, telecommunications, smart home, etc.
