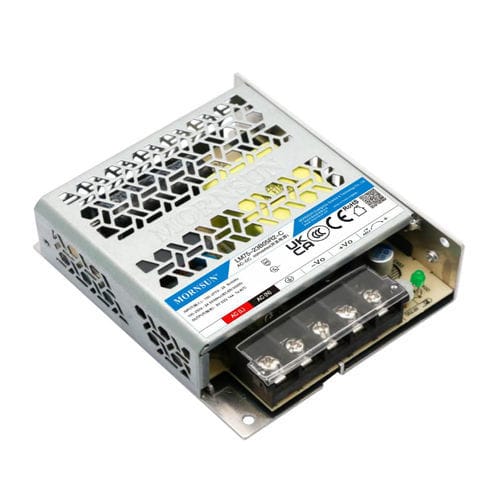

AC/DC power supply LM75-23BxxR2 seriessingle-outputstabilizedswitching
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output, stabilized
- Technology
- switching
- Network
- single-phase
- Protection
- with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
- Connection
- with screw terminal block, with safety terminals
- Mounting
- rack-mount
- Certifications
- CE
- Features
- compact, closed frame, case
- Applications
- for industrial applications, for telecommunications equipment, for LED lighting, rugged
- Other characteristics
- safety, wide input range, high-performance
- Input voltage
Max.: 430 V
Min.: 80 V
- Output voltage
Max.: 54 V
Min.: 5 V
- Current
Max.: 14 A
Min.: 1.4 A
- Power
Max.: 76.8 W
75 W
Min.: 70 W
Description
LM75-23BxxR2 series is the ultra-small second-generation new industrial standard mental case-type power supply. Mornsun has innovated the industrial chassis power supply standard from the dimensions of size, performance, technology, and structure. It features universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UUEN/BSEN62368, EN60335, EN61558, EN62477, GB4943 standards, and they are widely used in the area of industrial, LED, streetlight control, electricity, security, telecommunications, smart home, etc.
