DC electromechanical relay D-RB seriespowerplug-in
Add to favorites
Compare this product
Characteristics
- Control voltage
- DC
- Function
- power
- Terminal strip
- plug-in
- Switching current
Max.: 16,000 mA
Min.: 10 mA
Description

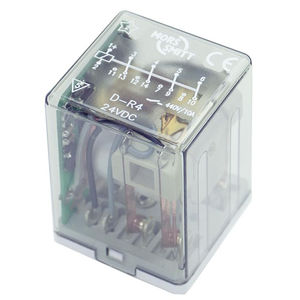

D-BR4 relays, high DC breaking capacity, fast switching relays
Heavy duty, fast relay for demanding applications. Fast switching / pull-in, integrated magnetic arc blow-out functon for higher DC breaking capacity.
Plug in relay
Smitt-style pinning
4 C/O contacts
Rated load 7A /110V DC1
Coil voltages 12...220VDC
DC coil
Integrated 'snap-lock' retaining clip
Magnetic arc blow-out (option B standard)
Fast switching <7 ms (for DC only) (option R4)
Dimensions 40 x 40 x 53 mm
