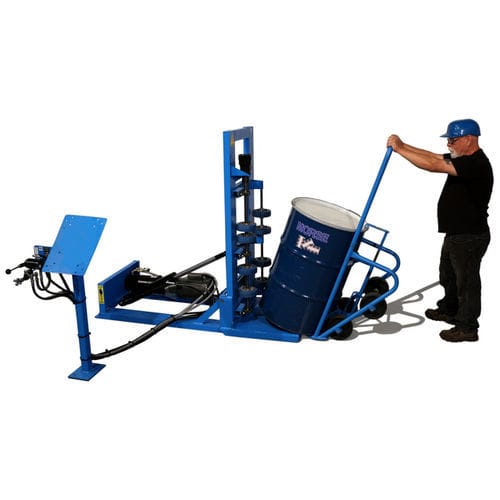

Drum rotator 456 series

electric

Hydra-Lift Rollers have Ergonomic POWER-TILT to get upright drum over onto roller wheels. Vary drum rolling speed mix contents of Closed Drum Without Even Opening It! Key features • Roll drum to remix settled ingredients • Eliminate transfer, clean-up, and special vessels • Use separate drum for each batch • No container to purge between batches • Nothing to insert into drum to mix • Easy to load by hand truck or hoist • Variable Drum Speed from 5 to 20 RPM (4 to 16 RPM for 50Hz models), based on a 55-gallon (210 liter) drum • Roll a steel drum: 6" to 26" (15 to 66 cm) diameter; maximum 40" (102 cm) length • To roll a plastic drum, add Option # POLY-456 • To roll 1-to-5 gallon cylindrical can, install Option # 1-5-1 Idler Attachment • Maximum ambient operating temperature: 130o F (54o C) • Control Package and Guard Enclosure each sold separately • IMPORTANT: OSHA requires enclosure with safety interlock • Capacity: ◦ 1000 Lb. (455 kg) Liquid Load ◦ 400 Lb. (182 kg) Dry Load Shifting dry load exerts greater stress on drum rotator than fluid motion of liquid load Morse developed the basic concept to provide "hands-off" drum mixing. Enjoy the benefits of easy, ergonomic loading and unloading and eliminate many hazards of manual drum handling. Morse Hydra-Lift Drum Rollers accept a drum in upright position at floor level. You control the hydraulic powered drum tilt to lift the upright drum and place it down on drum rotator wheels.
