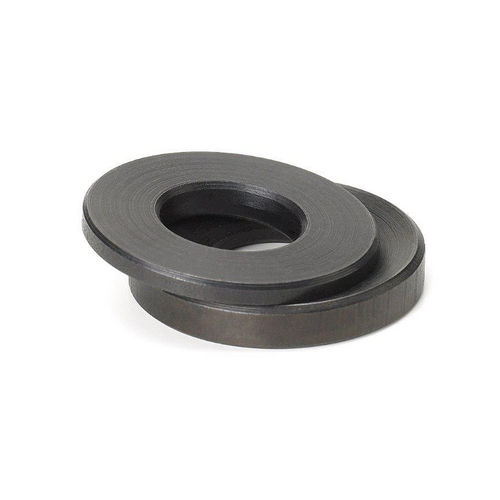

Locking washer SP-0roundsphericalstainless
Add to favorites
Compare this product
Characteristics
- Type
- locking
- Configuration
- round, spherical
- Material
- stainless, carbon steel
- Other characteristics
- machined
- Internal diameter
Min.: 6.4 mm
(0.25 in)Max.: 31 mm
(1.22 in)- External diameter
Min.: 12 mm
(0.472 in)Max.: 56 mm
(2.205 in)- Thickness
Min.: 4.2 mm
(0.165 in)Max.: 19.2 mm
(0.756 in)
Description
Precision machined sets for inch and metric bolt sizes
Available in case hardened carbon steel with black oxide finish and 303 stainless steel
Bottom washers can also be used with spherical collar nuts for clamping
Approximate alignment correction of 3-4 degrees
Tops and bottoms can be ordered separately. Please specify when ordering.
