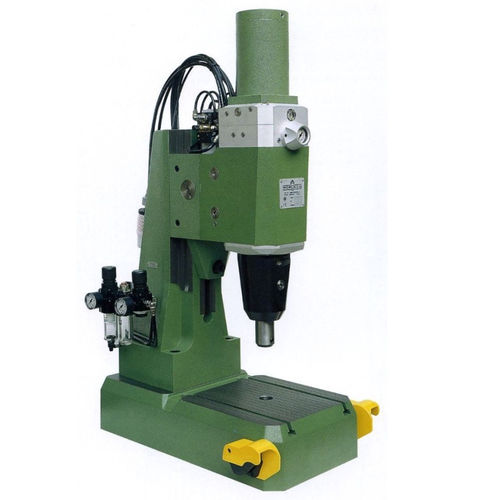

Hydro-pneumatic press P3580drawingrivetingpunching
Add to favorites
Compare this product
Characteristics
- Operation
- hydro-pneumatic
- Function
- drawing, riveting, punching, bending
- Force
3,600 kgf
- Stroke
8 mm
(0.315 in)- Table width
270 mm
(11 in)- Table length
285 mm
(11 in)- Max. pressure
Max.: 6 bar
(87 psi)Min.: 3 bar
(44 psi)- Weight
210 kg
(463 lb)
Description
Our pneumatic and oleopneumatic presses with double effect are suitable for:
cutting- bending- riveting - deep drawing
punching - forming - bushing
Features common to all models:
stroke micrometer adjusting
descent speed adjusting
anti rotation tools holder stem
All models can be supplied in the following versions:
Full version:
base with two-hand control of simultaneity and with protections
vertical post for the light adjusting
regulator- lubricator filter
CE certification by IMQ
Unit version:
for automations or mounted on special machines
