- Production Machines
- Cutting Machine
- Manual press
- MORUECO s.r.l.

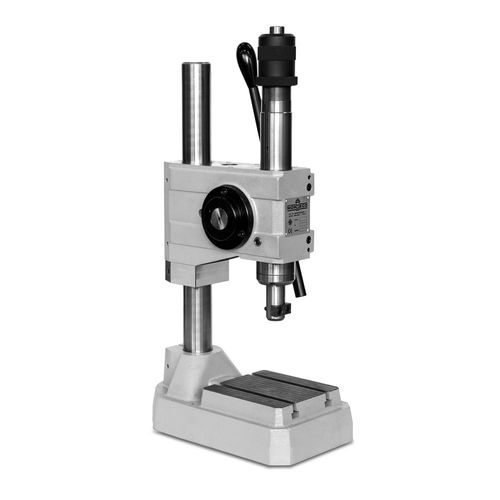

Manually-controlled press M20drawingcuttingriveting
Add to favorites
Compare this product
Characteristics
- Operation
- manually-controlled
- Function
- bending, drawing, cutting, riveting, marking
- Other characteristics
- bench-top
- Force
Min.: 50 kgf
Max.: 2,000 kgf
- Opening
Min.: 0 mm
(0 in)Max.: 45 mm
(2 in)- Stroke
Min.: 0 mm
(0 in)Max.: 45 mm
(1.772 in)- Table width
130 mm
(5 in)- Table length
135 mm
(5 in)- Weight
30 kg
(66 lb)
Description
Our percussion pneumatic riveting machines are suitable for:
marking - riveting - chamfering - punching
pressing - deep drawing - bending - forming
Features common to all models:
beating force adjustement with one command
anti rotation tools holder stem
All models can be supplied in the following versions:
Full version:
base with two-hand control of simultaneity and with protections
vertical post for the light adjusting
regulator - lubricator filter
CE certification by IMQ
Unit version:
for automations or mounted on special machines
