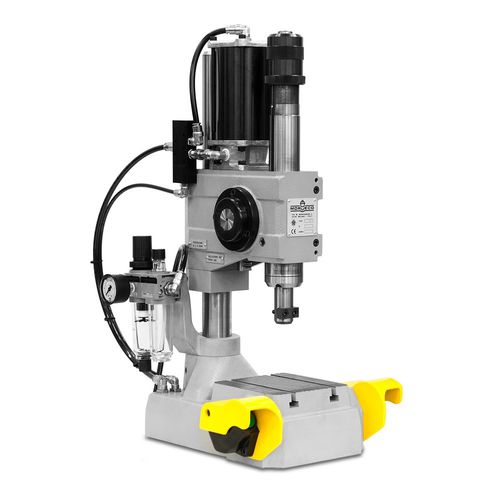

Pneumatic press M20 drawingcuttingriveting
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- drawing, cutting, riveting, marking, bending
- Force
Max.: 2,000 kgf
Min.: 50 kgf
- Opening
Max.: 45 mm
(2 in)Min.: 0 mm
(0 in)- Stroke
Max.: 45 mm
(1.772 in)Min.: 0 mm
(0 in)- Table width
135 mm
(5 in)- Table length
130 mm
(5 in)- Max. pressure
Max.: 6 bar
(87 psi)Min.: 3 bar
(44 psi)- Weight
38 kg
(84 lb)
Description
Our percussion pneumatic riveting machines are suitable for:
marking - riveting - chamfering - punching
pressing - deep drawing - bending - forming
Features common to all models:
beating force adjustement with one command
anti rotation tools holder stem
All models can be supplied in the following versions:
Full version:
base with two-hand control of simultaneity and with protections
vertical post for the light adjusting
regulator - lubricator filter
CE certification by IMQ
Unit version:
for automations or mounted on special machines
