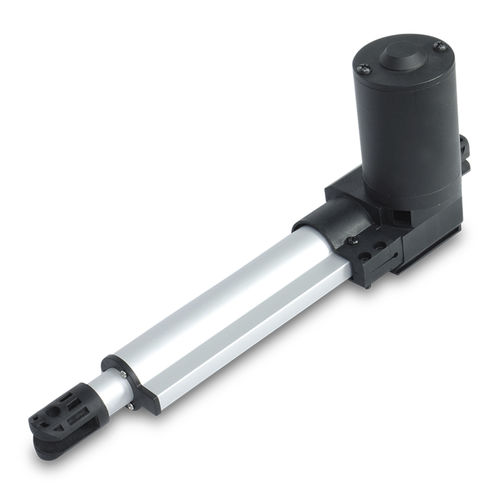

Linear actuator FD60 series
electricDC24-volt

linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Motor
DC
Voltage
24-volt, 12-volt
Applications
for furniture
Other characteristics
with integrated limit switch
Stroke

Max.: 300 mm
(11.811 in)

Min.: 50 mm
(1.969 in)

Force

4,000 N, 6,000 N

Speed

Max.: 33.3 mm/s

Min.: 2.9 mm/s

Ambient temperature

Max.: 65 °C
(149 °F)

Min.: -20 °C
(-4 °F)

Description

FD60 is a quiet and powerful actuator designed for use in furniture and homecare application. Our T control box, which can be perfectly attached and integrated to FD60, is available for customers to choose. Technical information •Input voltage: 24V DC / 12V DC •Max. load: 6000N (push) / 4000N (pull) •Typical speed at no load: 33.3 mm/sec •Typical speed at full load: 2.9 mm/sec (6000N load) •Stroke: 50 ~ 300 mm •Noise level: ≦50dB •IP Protection level: IP42 •Color: Black •Preset limit switches •Duty cycle: 10%, max. 2 min. continuous operation in 20 min. •Ambient operation temperature: -20°C ~ +65°C •Certified: CE Marking, EMC Directive 2014/30/EU, UL 962 Standard for Household and Commercial Furnishings. Option •Positioning signal feedback with Hall effect sensor x 1 •Positioning signal feedback with Hall effect sensor x 2 •Mechanical push only extension tube •Mechanical brake •Turn 90° Pivot orientation of rear connector
