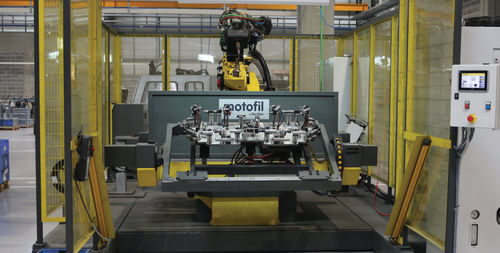

3-axis welding positioner MCT220 series

electromechanicalrotary

Welding of small parts with low working cycles (high production volume). General Characteristics DESCRIPTION This is a solution prepared for different types of welding (MIG / TIG / SPOT). The single workstation allows short working cycles and easy operation. The solution is composed of a unique structure that gives rigidity to the equipment and protects all the components. This equipment is ideal for the production of: Automotive parts (pedals, seats, among others), bicycles, fire extinguishers, metal parts of complex geometry, among others. Models MCT2203 - MCT2206 Max. payload [Kg] 300 600 Max. welding diameter [mm] 1000 1000 Distance between points [mm] 1500 1500 - 2000 Loading station 2 2 All models are equipped with pneumatic actuation curtains and safety metallic protections. Optional: nº. of robots; welding process; welding jigs.
